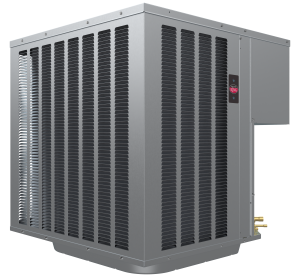

• Fully Louvered Steel Cabinet: Features durable construction to add protection from yard hazards, weather corrosion
• Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
• 7 mm Condenser Copper Coil1: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
• Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
• Easily Accessible Control Box: Ease of installation and serviceability


• Cooling Efficiencies up to: 16 SEER2/11.7 EER2
• Heating Efficiencies up to: 8.1 HSPF2
• Nominal Sizes: 11/2 to 5 Ton [5.28 to 17.6 kW]
• Cooling Capacities: 17.1 to 55.5 kBTU [5.0 to 16.3 kW]

Documents

• Submittal Sheet
• Consumer Literature

Parts: Five (5) Years

Conditional Compressor: Ten (10) Years (Registration Required)
